Automotive Grade Module Reactive/Active Aging Test System - Maxwell-pro
The Maxwell-pro system is designed for reactive power aging tests on automotive-grade power devices before delivery. It simulates the working conditions of power modules in new energy vehicles to eliminate early-failure devices and study device performance in extreme conditions.
-
100-1000VDC bus voltage
-
600A RMSMaximum test current
-
-10~20VGate drive voltage
-
20~250HzThree-phase output frequency
Product Test Capability and Main Advantages
DC bus voltage: 100-1000V
Maximum test current: 600A RMS
Peak current: 850A @10ms
Gate drive voltage: -10~20V
Three-phase output frequency: 20~250Hz continuously adjustable
Carrier frequency: 2~20kHz adjustable
Supports high-temperature testing with coolant temperature range: ambient +15°C~80°C
Each station has an independent cabinet, allowing multi-station parallel testing based on production capacity requirements
Microsecond-level (<2μs) overcurrent protection to prevent device explosions and protect equipment/fixtures
Supports fully automated testing with complete production line solutions

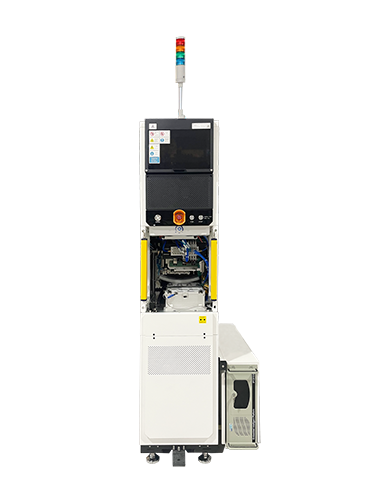

Single-station test machine

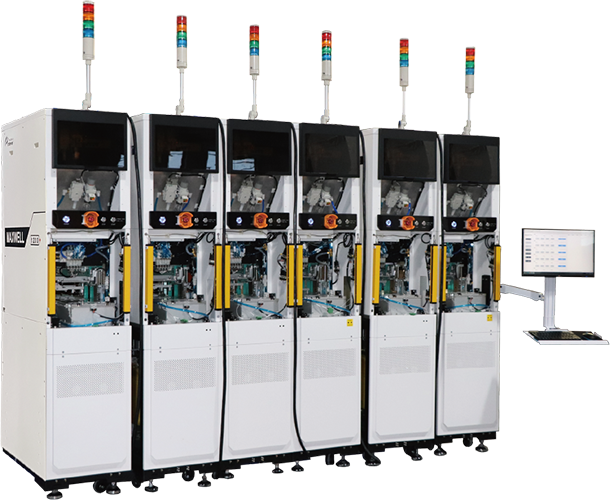

Six-station test machine
