High - Voltage IGBT Module Test Solution
- Prime-Rel Electronic Technology has accumulated extensive technical expertise in high-voltage IGBT testing, offering a complete set of solutions for press-pack IGBT modules and sub-unit evaluations. The system achieves software-controlled automation for precise high-voltage and high-current regulation, ensuring testing accuracy and reliability. The products comply with international safety standards such as IEC and UL to guarantee operator and equipment safety. Additionally, customized configurations are available based on client requirements.High - voltage overcurrent protection: Up to 6kV testing.
High - current overcurrent protection: Dual-pulse testing: Up to 30 kA, Short-circuit testing: Up to 40 kA.
Adjustable parasitic inductance: Continuously adjustable from 0 to 2μH.
High-Current Source Meter (HCM): 2kA per unit, parallelable up to 12kA/30V output, compatible with Gfs and VP testing.
High-Voltage Source Meter (HVM): 8kV/200mA.

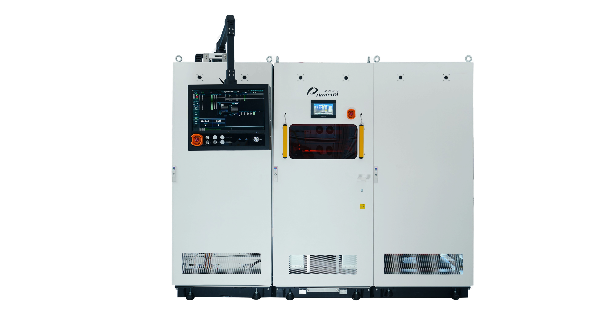

Pressing technology: 150kN, with an accuracy of ±2%±0.5kN. - Dynamic Test System AVATAR-DHVDouble-pulse Test: 6kV/30kA
SCSOA (Short-Circuit Safe Operating Area): 6kV/40kA
Pressure: 150kN
- Static Test System AVATAR-SHVHigh-voltage source: 8 kV/200 mA
High-current source: 30 V/12 kA
Pressure: 150 kN

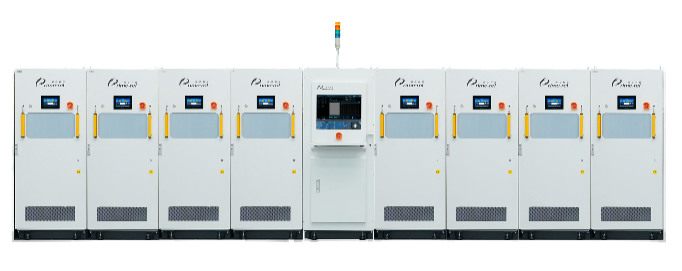

- Environmental Aging Test System HTXB-Hulk-8000Test capacity: 7 kV/300 mA (16 stations)
Temperature range: Up to 200°C
Pressure: 150 kN
