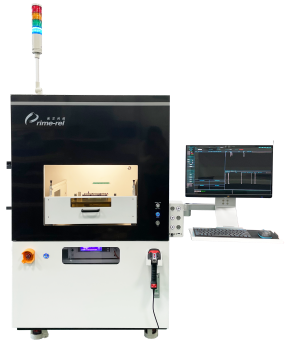

Insulation Test System Thor-6000
AC output voltage: 0.05-5000V, DC output voltage: 0.05-6000V.IR test range (option): 1MΩ-10GΩ. Supports Kelvin detection function: single-board card with 2 Kelvin outputs. Supports insulation testing between any phase and base (bottom) plate.
-
0.05-5000VAC output voltage
-
0.05-6000VDC output voltage
-
1MΩ-10GΩIR test range
-
single-board card with 2 Kelvin outputsKelvin detection
Product Test Capability and Main Advantages
AC output voltage: 0.05-5000V, DC output voltage: 0.05-6000V.
IR test range (option): 1MΩ-10GΩ.
Supports Kelvin detection function: single-board card with 2 Kelvin outputs.
Supports insulation testing between any phase and base (bottom) plate. (Bottom plate connected to negative pole).
Supports insulation testing between any phase and NTC.
Insulation testing between NTC and base (bottom) plate. (Bottom plate connected to negative pole).
Supports SECS/GEM protocol and automatic data retention.
Suitable for semi-automatic and fully-automatic testing, and manual testing in laboratories.
Supports various IGBT and SiC module packages and topologies, such as discrete device, half-bridge, full-bridge, three-phase bridge, three-level, IPM.
Thor-6000
